Connecting to a database using JDBC

Two college friends asked me to create a "Hello World" level pragmatical explanation of how a java system can connect to a database and interact with data. Also i've been told, to use any java api or tool i wish to achieve this task.

I think the easiest way to make a demo of how to connect to a database, is to use the JDBC api, that is included in the JSE-SDK since years. Also i think that for a learning purposes and better understanding of how java works with databases, this would be the best(Instead of using ORM tools like Hibernate or JPA)

Ok, lets get started:

Prerequisites:
-The java SE JDK
-
An IDE(I suggest you eclipse)
-A database driver(More info about JDBC drivers )
-A database server(For its simplicity to use, i would recommend you  Microsoft SQL 2005)

The source code:


1:  import java.sql.Connection;
2:  import java.sql.DriverManager;
3:  import java.sql.ResultSet;
4:  import java.sql.SQLException;
5:  import java.sql.Statement;
6:  public class DB {
7:   public void dbConnect() {
8:   Connection con = null;
9:   Statement stmt = null;
10:   ResultSet rs = null;
11:   String connectionURL = "jdbc:sqlserver://127.0.0.1;databaseName=forJDBC;user=george;password=george;";
12:   try {
13:    Class.forName("com.microsoft.sqlserver.jdbc.SQLServerDriver");
14:    con = DriverManager.getConnection(connectionURL);
15:    System.out.println("Connected!");
16:    String SQL = "SELECT * FROM Samples";
17:    stmt = con.createStatement();
18:    rs = stmt.executeQuery(SQL);
19:    while (rs.next()) {
20:    System.out.println();
21:    System.out.println(rs.getString(1) + "-" + rs.getString(2));
22:    }
23:   } catch (SQLException e) {
24:    e.printStackTrace();
25:   } catch (ClassNotFoundException e) {
26:    e.printStackTrace();
27:   } finally {
28:    if (rs != null) {
29:    try {
30:     rs.close();
31:    } catch (Exception e2) {
32:     e2.printStackTrace();
33:    }
34:    if (stmt != null) {
35:     try {
36:     rs.close();
37:     } catch (Exception e2) {
38:     e2.printStackTrace();
39:     }
40:    }
41:    if (con != null) {
42:     try {
43:     rs.close();
44:     } catch (Exception e2) {
45:     e2.printStackTrace();
46:     }
47:    }
48:    }
49:   }
50:   }
51:  }
Explanation:


1- The first thing we need is to add the JDBC driver that will allow us to connect to the database into the projects builth path:

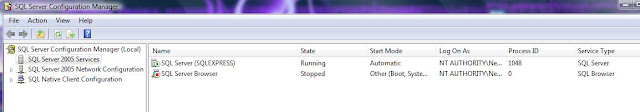

2.1-Make sure the database server is started.(Make sure you have logged in as an administrator)












2.2- Create a table in the database and add some data.
In this example i will not create the tables programatically. You can do it your selves with SQL Management Studio or similar tool. Just create a Database that meets the configuration above, and add two it a table called Sample with to VARCHAR fields. If you want to know more about how to programatically create tables with JDBC follow this link: http://www.roseindia.net/jdbc/jdbc-mysql/CreateTable.shtml


3-Create a connection URL:


1:  String connectionURL = "jdbc:sqlserver://127.0.0.1;databaseName=forJDBC;user=djoleP;password=djoleP;";

4-Find the driver located path the ClassPath (if needed)

 Class.forName("com.microsoft.sqlserver.jdbc.SQLServerDriver");

5-Connect to the database

 con = DriverManager.getConnection(connectionURL);
 System.out.println("Connected!");

6-Create a SQL Querry and an Statement, to be able to execute the query

1:  String SQL = "SELECT * FROM Samples";
2:    stmt = con.createStatement();
3:    rs = stmt.executeQuery(SQL);


6-Extract data until the result set is empty

1:  while (rs.next()) {
2:    System.out.println();
3:    System.out.println(rs.getString(1) + "-" + rs.getString(2));
4:    }



7-Close the result set, connection and other streams that you might open(The transaction is finished!)


1:  finally {
2:    if (rs != null) {
3:    try {
4:     rs.close();
5:    } catch (Exception e2) {
6:     e2.printStackTrace();
7:    }
8:    if (stmt != null) {
9:     try {
10:     rs.close();
11:     } catch (Exception e2) {
12:     e2.printStackTrace();
13:     }
14:    }
15:    if (con != null) {
16:     try {
17:     rs.close();
18:     } catch (Exception e2) {
19:     e2.printStackTrace();
20:     }
21:    }
22:    }





Download the source codes(The database driver is included in the project):
http://www.mediafire.com/?9f6ka2y4ctp6630

This post goes dedicated to my two good colleges from college Tripo and Zoran.
